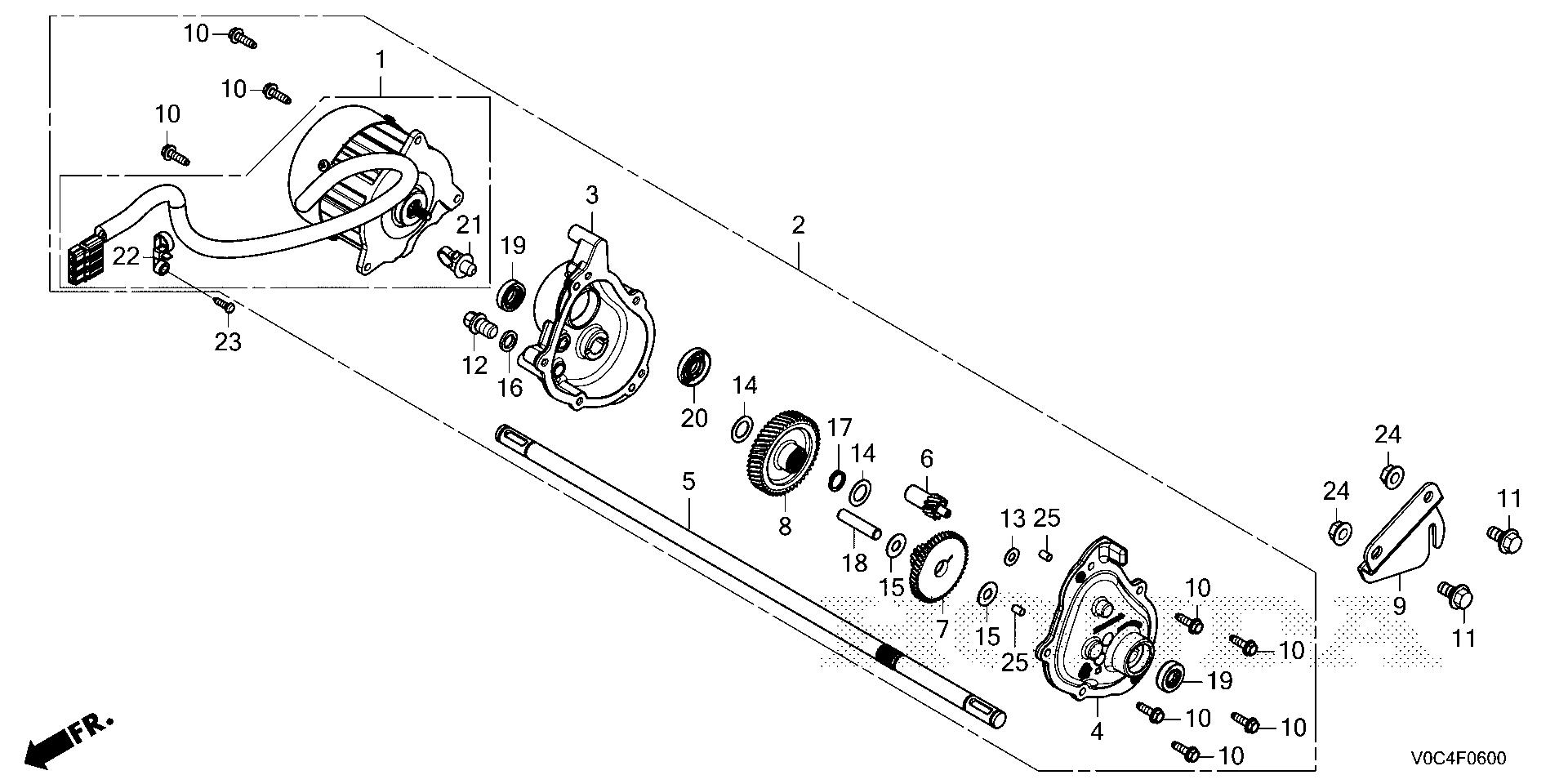

Lawn Mowers HRX HRX217 HRX217YXB EXA6 MADY-2000001-9999999 TRANSMISSION (1) - Formula H Motorworks, Inc.

  1. Product Lines
  2. Lawn Mowers
  3. HRX
  4. HRX217
  5. HRX217YXB EXA6 MADY-2000001-9999999
  6. TRANSMISSION (1)

WARNING: California Prop 65 Information

Ref No
Part Number
Description
Serial Range
Qty
Price
Ref No
1
Part Number
 1A100-V0C-M21
Description
 MOTOR ASSY., DRIVE (RES-2BAY)
Serial Range
 1000001 - 9999999
Qty
Price
 $164.61
Ref No
2
Part Number
 20001-V0C-M20
Description
 TRANSMISSION ASSY.
Serial Range
 1000001 - 9999999
Qty
Price
 $594.96
Ref No
3
Part Number
 21111-V0B-N20
Description
 CASE, TRANSMISSION
Serial Range
 1000001 - 9999999
Qty
Price
 $161.56
Ref No
4
Part Number
 21611-V0B-N20
Description
 COVER, REDUCTION
Serial Range
 1000001 - 9999999
Qty
Price
 $33.40
Ref No
5
Part Number
 23251-V0B-N20
Description
 SHAFT, FINAL
Serial Range
 1000001 - 9999999
Qty
Price
 $181.88
Ref No
6
Part Number
 23410-V0B-N20
Description
 GEAR, DRIVE
Serial Range
 1000001 - 9999999
Qty
Price
 $36.00
Ref No
7
Part Number
 23420-V0B-N20
Description
 GEAR, COUNTER
Serial Range
 1000001 - 9999999
Qty
Price
 $36.00
Ref No
8
Part Number
 23431-V0B-N20
Description
 GEAR, FINAL
Serial Range
 1000001 - 9999999
Qty
Price
 $30.80
Ref No
9
Part Number
 51139-V0B-N20
Description
 BRACKET, TRANSMISSION MOUNT
Serial Range
 1000001 - 9999999
Qty
Price
 $4.24
Ref No
10
Part Number
 90012-892-000
Description
 BOLT, FLANGE (5X16)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.80
Ref No
11
Part Number
 90102-VH7-T30
Description
 BOLT, CABLE MOUNT
Serial Range
 1000001 - 9999999
Qty
Price
 $4.74
Ref No
12
Part Number
 90131-ZE1-000
Description
 BOLT, DRAIN PLUG
Serial Range
 1000001 - 9999999
Qty
Price
 $2.92
Ref No
13
Part Number
 90501-V0B-N20
Description
 WASHER, THRUST (6X13X0.81)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.22
Ref No
14
Part Number
 90501-VR8-N00
Description
 WASHER, PLAIN (12.7X20X0.8)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.22
Ref No
15
Part Number
 90502-V0B-N20
Description
 WASHER, THRUST (8X18X0.81)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.22
Ref No
16
Part Number
 90601-ZE1-000
Description
 WASHER, DRAIN PLUG (10.2MM)
Serial Range
 1000001 - 9999999
Ref No
17
Part Number
 90651-VE2-800
Description
 CIRCLIP (OUTER) (12.7MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.20
Ref No
18
Part Number
 91151-V0B-N20
Description
 ROLLER (8X37)
Serial Range
 1000001 - 9999999
Qty
Price
 $14.40
Ref No
19
Part Number
 91251-VL0-M00
Description
 OIL SEAL (12.7X22.2X6.4)
Serial Range
 1000001 - 9999999
Qty
Price
 $27.64
Ref No
20
Part Number
 91251-VR8-N00
Description
 OIL SEAL (12X28X6)
Serial Range
 1000001 - 9999999
Qty
Price
 $3.56
Ref No
21
Part Number
 91540-V0B-N00
Description
 CLIP, BAND HARNESS
Serial Range
 1000001 - 9999999
Qty
Price
 $1.12
Ref No
22
Part Number
 91541-V0B-N00
Description
 CLIP, SCREW MOUNT BAND HARNESS
Serial Range
 1000001 - 9999999
Qty
Price
 $1.12
Ref No
23
Part Number
 93911-14480
Description
 SCREW, TAPPING (4X16)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.08
Ref No
24
Part Number
 94050-08000
Description
 NUT, FLANGE (8MM)
Serial Range
 1000001 - 9999999
Ref No
25
Part Number
 94303-05080
Description
 PIN, DOWEL (5X8)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.70
